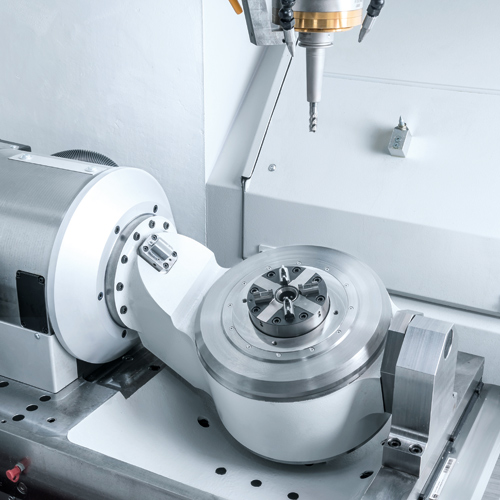

The RXP501DS is Röders’ solution for a compact but rigid 5-axis HSC machine that delivers the highest level of performance and accuracy in a small footprint. Its core design focuses on dynamic stability- featuring an optimum layout of the mass inertia and a design where the swiveling direction is at right angles to the X-axis for dynamic decoupling. A key structural element is the inclusion of a second bearing for the swivel axis, which is critical for guaranteeing high stiffness and enduring long-lasting machining operations without loss of precision.

The machine offers an ample machining range of 500 mm x 500 mm x 300 mm– handling a maximum workpiece weight of 60 kg on its 250 mm integrated table. It is equipped with a standard 42,000 rpm- 14 kW milling spindle (HSK E40) and can achieve feed rates up to 60,000 mm/min. Precision is ensured by high-resolution optical encoders in all axes- powerful wear-free direct drives– and a special Röders 5-axis geometry compensation system. The integrated 35-place chain tool changer (which can be loaded during machining) and a precise temperature control system for machine elements contribute to its very efficient, continuous operation. The RXP501DS is the ideal choice for manufacturers demanding extreme accuracy and speed in mould and die making, optics, or dental applications.
