The Röders RXP501DSC is a compact- yet powerful- addition to the Röders range of High-Speed 5-Axis Vertical Machining Centers engineered for applications demanding the highest levels of speed and accuracy- such as tool, mold, and die making. This machine features a generous machining range of 500 mm x 500 mm x 300 mm and utilizes powerful, wear-free direct drives in all axes- enabling rapid feed rates of up to 60,000 mm/min.

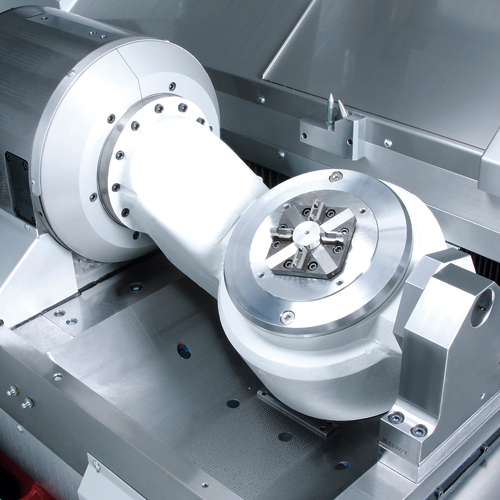

Its core distinction lies in its specialized 5-axis configuration- which includes a swiveling range of 115 degrees and an almost unlimited rotation range for the C-axis with no mechanical brake required. The design places the C-axis more eccentrically and incorporates a second bearing for the swivel axis- significantly boosting high stiffness and stability, particularly when utilizing large swivel angles, which grants better access to the workpiece.

Standard equipment includes a high-frequency 42,000 rpm- 14 kW milling spindle (HSK E40) and a 35-place chain tool changer that allows loading during machining- ensuring highly efficient- non-stop operation. The machine benefits from a precise temperature control system and special Röders 5-axis geometry compensation– guaranteeing sustained high precision even during long-lasting machining operations on workpieces up to 30 kg.
