The RXP601DSH is a cutting-edge 5-axis machine engineered by Roeders TEC to deliver unmatched performance in high-speed machining applications. It achieves the highest possible dynamics through the use of extremely powerful, wear-free direct drives in all linear and rotary axes, with a rapid feed rate of up to 60,000 mm/min. Precision is ensured by a combination of high-resolution optical encoders and special Röders 5-axis geometry compensation, which maintains high accuracy even during long machining operations. The robust design includes two-sided support of the C-axis for high stability and precision.

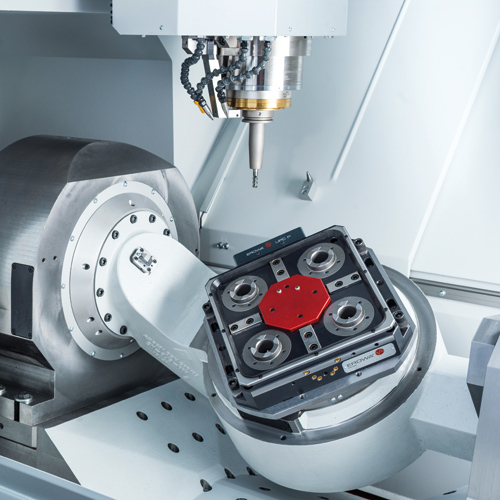

The machine’s capacity is a key feature, offering a maximum workpiece size in height and diameter that is significantly larger than the RXP601DS model, with a generous machining range of 540 mm x 635 mm x 400 mm. It can accommodate workpieces up to 200 kg on its highly stable C-table. The standard configuration includes a high-performance milling spindle capable of 36,000 rpm with 15 kW of power, and a 36-position tool changer (expandable to 76 or more positions), which can be loaded during machining. Features such as an integrated measuring laser and precise temperature control of machine components solidify the RXP601DSH as a high-efficiency solution for demanding applications like aerospace and complex mold and die production.
