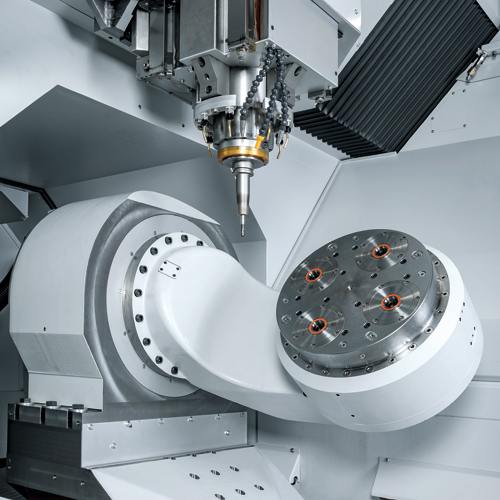

The RXU1001DBH is a uniquely designed model within the ROEDERS RXU series, built specifically as a high-dynamic, high-precision 5-axis vertical machining center. Its distinguishing feature is a special machine design optimized for handling BLINGS and similar complex workpieces, allowing for machining from two sides in one setup. This capability is facilitated by a robust rotary-swivel unit with a large swiveling range of 45º to -195º and a specialized one-sided fixation of the C-axis without a counter bearing to ensure flexible accessibility.

The machine is equipped with the QUADROGUIDE system, ensuring exceptional stability and dynamics across all movements. Core technology includes wear-free direct drives in all axes, high-resolution optical encoders, and precise temperature control of machine components, all contributing to the machine’s high precision. The standard configuration includes a powerful 36,000 rpm, 15 kW milling spindle with HSK E50 interface, and a fast rotary tool changer with 24 positions (optionally 40+ positions chain changer), which can be loaded during machining. With a working range of 800 mm x 855 mm x 500 mm and a maximum feed rate of 60,000 mm/min, the RXU1001DBH is the superior choice for high-speed, accurate, and consolidated machining of complex geometric parts.
