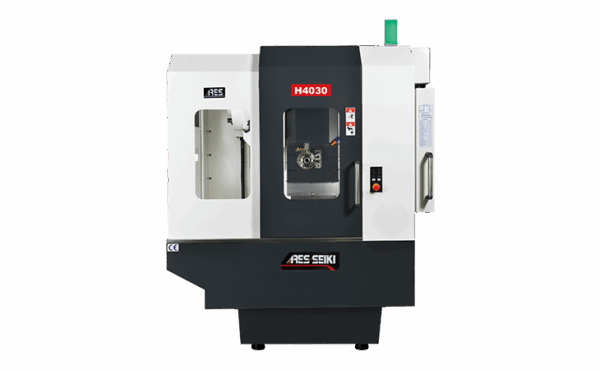

The H4030 Horizontal CNC Machining Center is part of ARES SEIKI’s H Series, designed to meet the rigorous demands of modern manufacturing, providing a potent combination of speed, precision, and efficiency. This machine features a generous 400 mm by 400 mm table capable of handling workpieces up to a maximum load of 200 kg and a maximum dimension of 480 mm in diameter. The table provides high-precision 0.001 degree indexing and excellent repeatability, ensuring superb accuracy for complex multi-sided machining.

Performance is driven by a 10-000 RPM direct-drive spindle, with optional speeds available up to 24-000 RPM, and is supported by a selection of top-tier motor brands including Mitsubishi, Fanuc, and Siemens. The machine boasts extremely fast acceleration and positioning with rapid traverse rates reaching 48 m-min on the X and Z axes and an impressive 60 m-min on the Y-axis. Tool changes are equally swift, utilizing a reliable arm-type ATC with a tool-to-tool time of just 2.5 seconds and a capacity for 24 plus 1 tools. The H4030 is fully equipped with advanced features, including an internal water tank capacity of 200 liters, making it a powerful and versatile solution for high-volume, high-accuracy production across various sectors.
