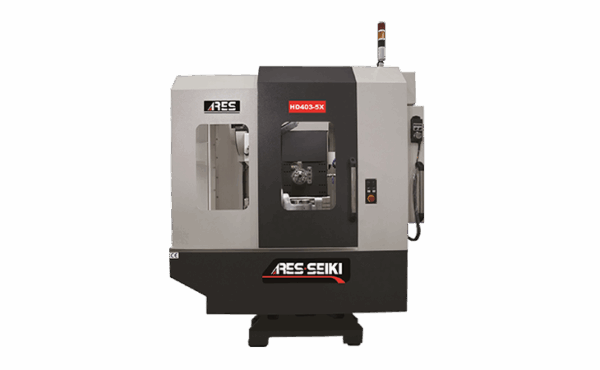

The HD403-5X from ARES SEIKI is a powerful and precise 5-Axis Horizontal CNC Machining Center that sets the standard for multi-face, complex component manufacturing. Built on the rigid H Series platform, this machine is equipped with a standard 12-000 RPM spindle and offers high-speed options up to 24-000 RPM to handle materials ranging from aerospace alloys to 3C electronics components. The spindle utilizes a direct driving system for superior power transmission and precision.

Its 5-axis capability is enabled by a dedicated Ø170 table with highly accurate A and C axes, providing a C-axis indexing precision of 0.001 degrees and rapid speeds of 150 RPM (A-axis) and 200 RPM (C-axis). Travel ranges are generous for its compact footprint, with X, Y, and Z travels of 400 mm by 610 mm by 380 mm. To maximize productivity, the machine boasts a lightning-fast rapid traverse rate of up to 60 m/min on the Z-axis and an arm-type ATC with a 2.5-second tool-to-tool time for its 24 plus 1 tool magazine. The HD403-5X is an essential tool for automotive, medical, and high-tech industries demanding precision and efficiency.
