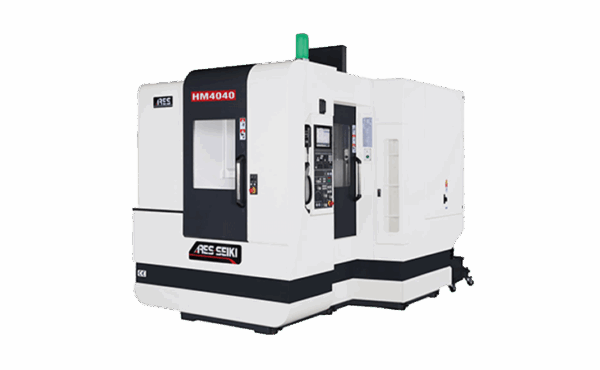

The ARES SEIKI HM4040 is a robust and efficient 5-Axis Horizontal Machining Center designed to handle complex multi-face workpieces with superior precision. This HMC boasts generous travels of 560 mm on the X-axis, 500 mm on the Y-axis, and 560 mm on the Z-axis, accommodating workpieces up to a maximum dimension of Ø560 x 700 mm. The machine is anchored by a sturdy 400 x 400 mm table with a maximum load capacity of 400 kg.

The core of the machine is its powerful BT40 direct-drive spindle with a standard speed of 10-000 RPM, with optional speeds available up to 15-000 RPM. This spindle provides the rotational accuracy and power necessary for diverse materials and cutting conditions. Efficiency is optimized by a quick 4-0 second Tool-to-Tool change time and a large 40-plus-1 tools capacity Arm-Type ATC, minimizing non-cutting downtime. With high-speed, rapid traverse rates of 48 m-min on all three linear axes, the HM4040 ensures highly productive operation. Its capabilities make it an excellent fit for demanding sectors, including Automotive- Motorcycle- Bike, Medical, and 3C Electronics.
