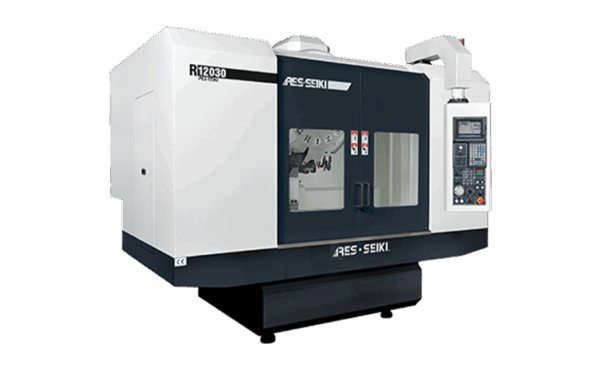

The R-12030 3-Axis VMC is a workhorse vertical machining center designed for shops and production environments that demand performance, versatility, and robustness. At its core, the R-12030 delivers a spacious 1300 mm by 530 mm work table that supports up to 400 kg load, making it suitable for heavy or large parts. The axes travel of 1200 mm (X) × 500 mm (Y) × 300 mm (Z) gives ample machining envelope for deep or complex cuts, while the table-to-spindle-nose clearance ranging 170 – 470 mm accommodates taller parts or fixtures.

Spindle performance on the R-12030 is a strong point. Its standard 10,000 rpm spindle can be optionally upgraded to 12,000, 15,000, 20,000, or 24,000 rpm, enabling a wide range of materials and cutting conditions from rough milling to fine finishing. The BT30 spindle taper with MAS403 P30T-1 pull stud ensures compatibility with a broad range of tooling — a plus for flexible production setups.

Tool management is streamlined thanks to the 14-station automatic tool changer (ATC), supporting tool weights up to 3 kg and tool lengths up to 200 mm. Tool change cycles are optimized for efficiency — M 2.0 / F 3.0 seconds (tool-to-tool). The machine combines a directly-coupled spindle drive system with a fully enclosed, heat-isolated electric cabinet, ensuring stable performance even under demanding workloads.

Built to serve a range of industries — from automotive and motorcycle manufacturing to bathroom hardware, electronics, medical components, and beyond — the R-12030 is engineered for reliability, precision, and flexibility. In short, this VMC offers an ideal balance of size, speed, and capability — making it a solid choice for shops that need a dependable CNC platform for varied and heavy-duty machining tasks.
