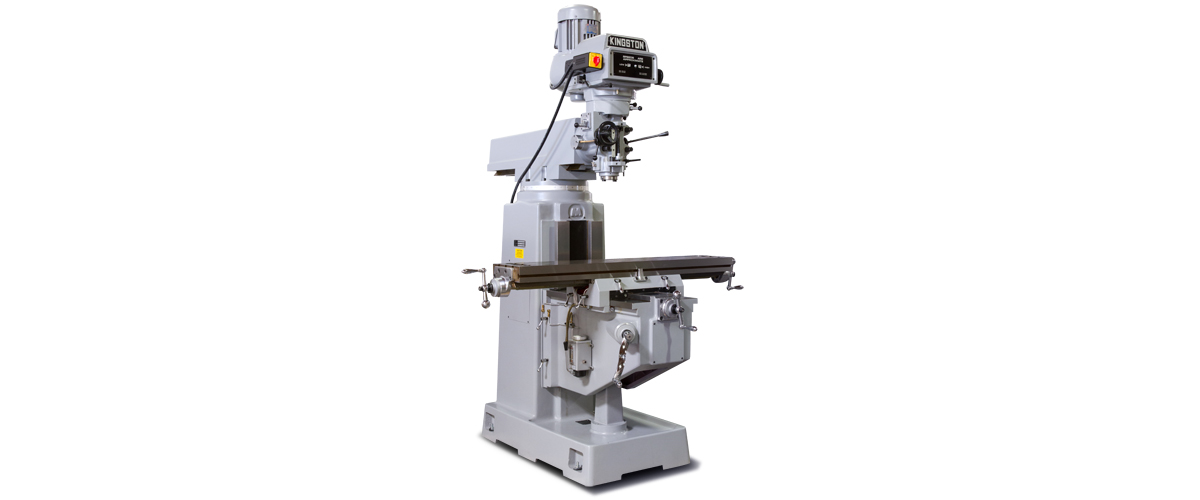

The Kingston KMT 5V Vertical Mill is engineered for heavy-duty precision machining, serving as the most powerful model in the KMT series. Its foundation is a massive body made from Meehanite casting, which provides exceptional vibration dampening and stability. For superior rigidity under heavy cuts, the machine incorporates Hardened and Ground Square Box Ways on both the Y and Z axes, while the X and Y axis sliding surfaces are coated with Turcite B for optimal anti-friction performance and smooth travel.

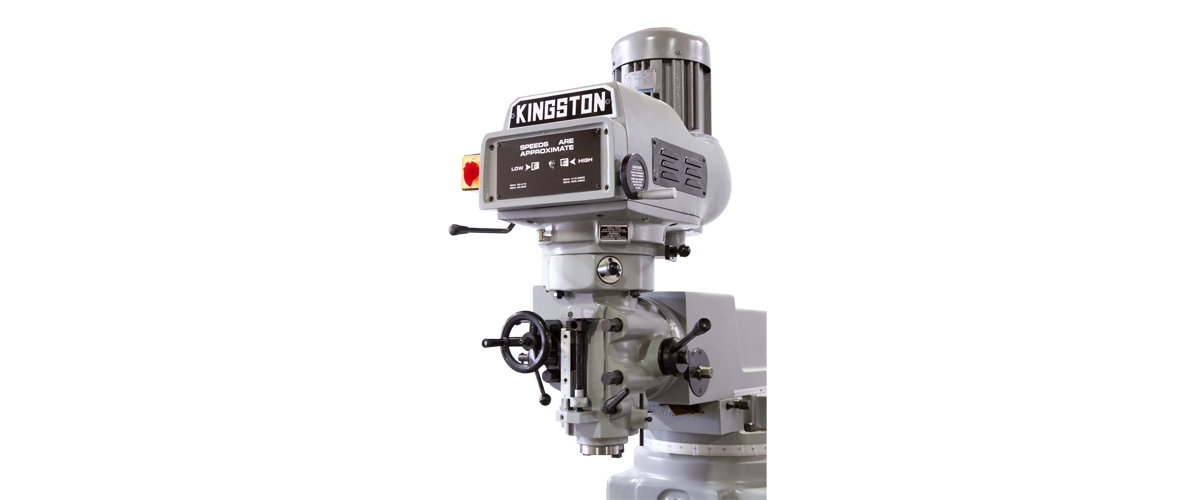

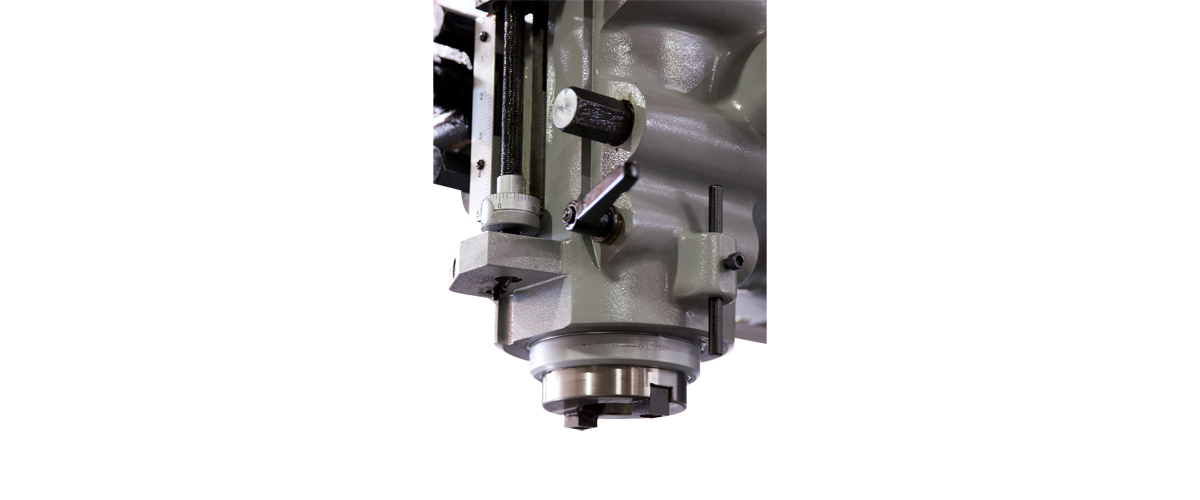

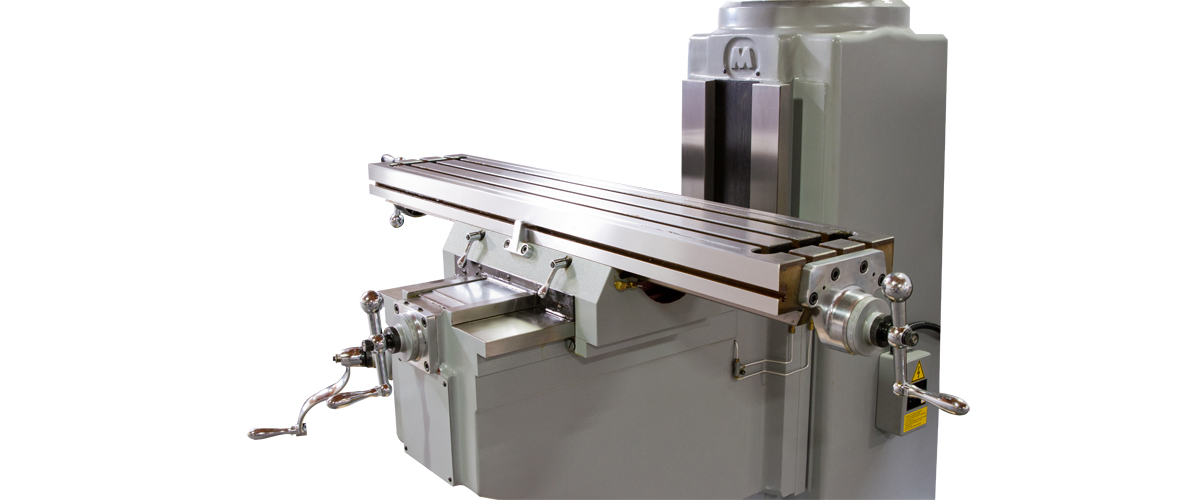

The mill features a large 10-inch by 50-inch hardened and ground table with expansive travel capabilities, 36 inches longitudinally and 175 inches crosswise. The spindle is driven by a powerful 5 HP motor and utilizes a heavy-duty NT 40 taper ideal for larger and more aggressive tooling. Precision is guaranteed by Class 7 precision spindle bearings, which maintain a maximum spindle runout within an exceptional 0002 inches. The variable speed head offers a wide range of speeds from 60 to 4200 RPM. The chromed quill provides 50 inches of travel with three automatic downfeed rates: 0015, 003, and 006 inches per revolution. The KMT 5V is a substantial machine weighing 3630 lbs, ensuring its durability and stability for long-term production use.
