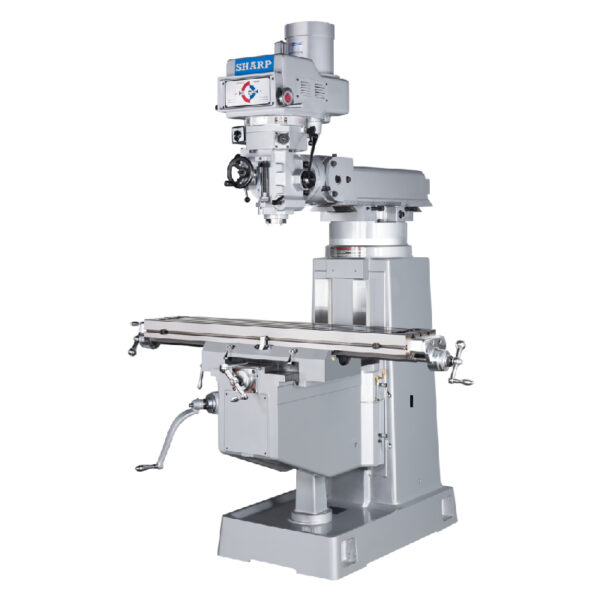

The Sharp TMV Vertical Knee Mill is a premium toolroom machine distinguished by its heavy-duty box ways on the vertical column and base, offering superior stability and support during heavy cutting compared to standard dovetail ways. The machine includes a large 10-inch x 54-inch table with travels of 39 inches in the X-axis and 163 inches in the Y-axis. It is powered by a 3 HP motor that drives an R-8 spindle with a variable speed range of 60 to 4500 RPM. Precision is ensured by a CNC-ground and chromed quill that achieves a spindle runout of no more than 0002 inches TIR. The TMV features a patented six-bolt Knuckle Head design, which securely locks the head to prevent slipping and maintain accuracy. For long-term reliability, the machine incorporates a double nut backlash eliminator for precise feed screw adjustment and an integrated one-shot lubrication system. Its robust construction and advanced features make the TMV an excellent choice for demanding general-purpose and toolroom milling work.
