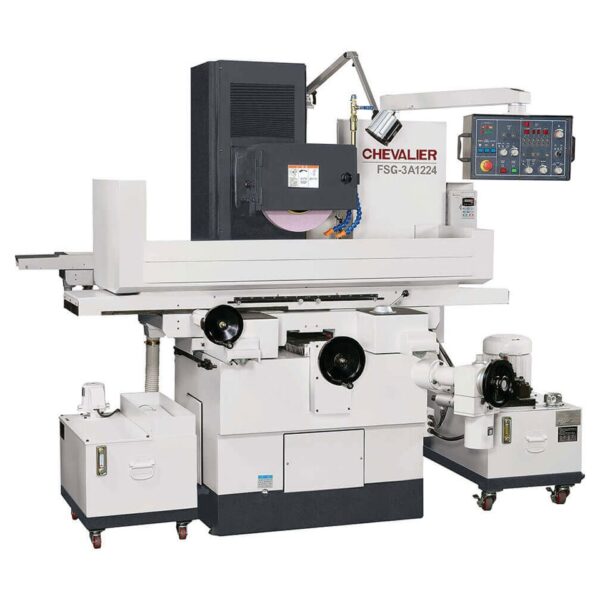

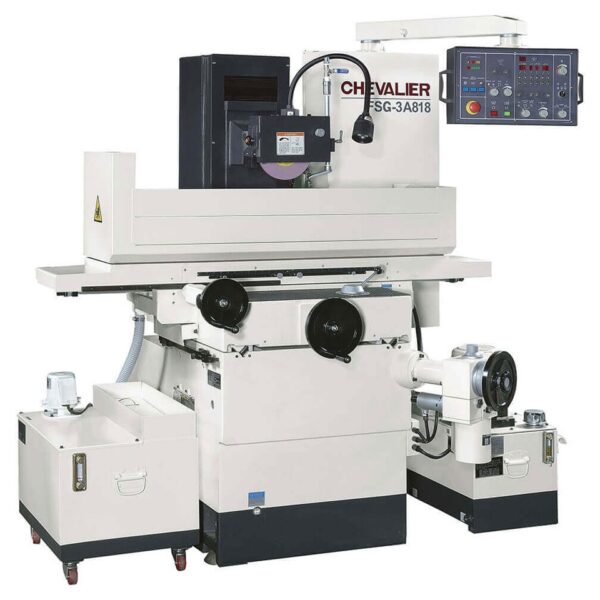

The Chevalier FSG-3A818 / 3A1224 Automatic Precision Surface Grinder series is designed for manufacturers who require high-volume production combined with exceptional surface finish and precision. The machine’s foundation is built on a heavy-duty Meehanite cast iron base, which provides superior vibration dampening. This base is paired with the saddle traveling on hand-scraped double V guideways that are coated with Turcite-B, ensuring smooth movement, enhanced wear resistance, and long-term geometric accuracy.

This grinder offers 3-Axis fully automatic operation and includes dedicated grinding cycles for both surface and plunge applications, simplifying complex grinding tasks. At the core of its performance is the high-precision cartridge-type spindle, which utilizes four pieces of Class 7 angular contact ball bearings. This robust spindle design makes the machine suitable for heavy-duty grinding while maintaining precise tolerances. Further contributing to stability and quality, a separate hydraulic system is employed to prevent vibration and significantly reduce heat transference to the machine body. For production efficiency, the wheel head is programmed to rise automatically, and the table parks after a grinding cycle, streamlining the operator’s workflow. The FSG-3A818 offers an 8″ x 18″ capacity, while the larger FSG-3A1224 provides a 12″ x 24″ capacity with a powerful 5 HP spindle motor.
