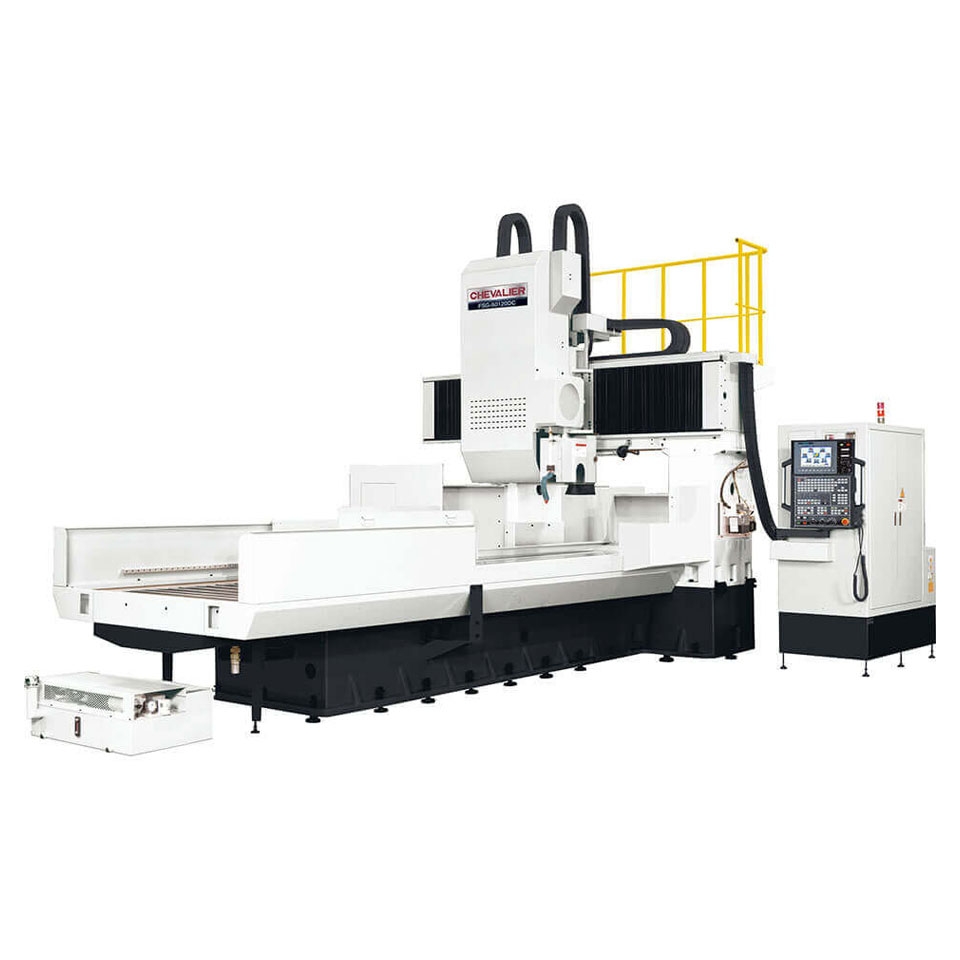

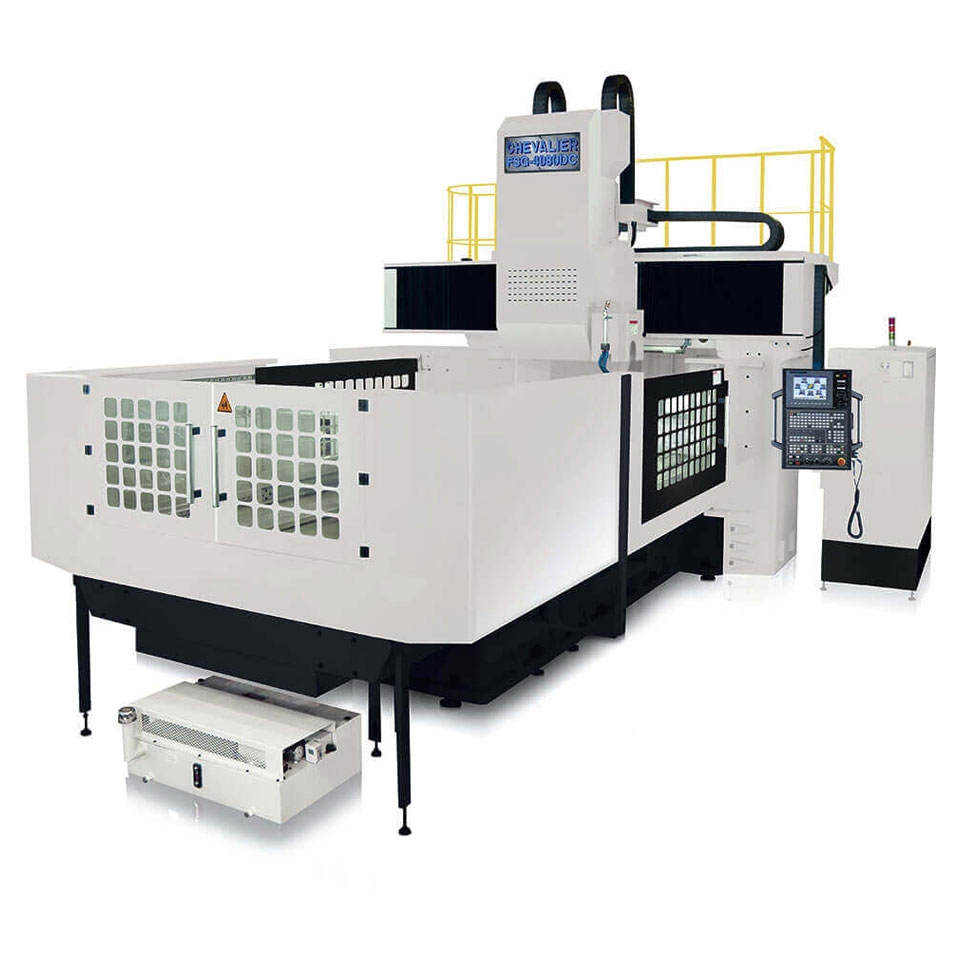

The Chevalier FSG-40 / 50 / 60DC Series is a line of heavy-duty Fixed-Beam Double-Column Surface Grinders designed for grinding large, heavy workpieces with high precision and reliable performance.

This series is built around a robust double-column design and is controlled by the SMART iControl system. It features exceptional structural rigidity for long-term accuracy, even when handling maximum table loads of up to 19,800 pounds (9,000 kg), as seen on the FSG-60160DC model.

Key features for precision and performance include:

• Precision Spindle: A high-precision cartridge-type spindle equipped with four Class 7 (P4) angular contact ball bearings, ensuring minimal runout and maximum grinding accuracy. It is typically powered by a 25 HP horizontal spindle motor.
• Accurate Movement: The cross-feed and down-feed axes utilize C3 grade precision ball screws directly coupled to Delta AC servo motors for precise movement.
• Longevity and Stability: The longitudinal movement of the spindle head employs a roller-type linear guideway design. An automatic cycle, continuous-flow lubrication system is used for the guideways, ball screw, and table, maintaining smooth movement and extended machine life.

The series is available in numerous sizes, offering exceptional capacity, with grinding lengths up to 157.5 inches (4,000 mm) and grinding widths up to 59.1 inches (1,500 mm), making it ideal for large-scale industrial surface grinding.
