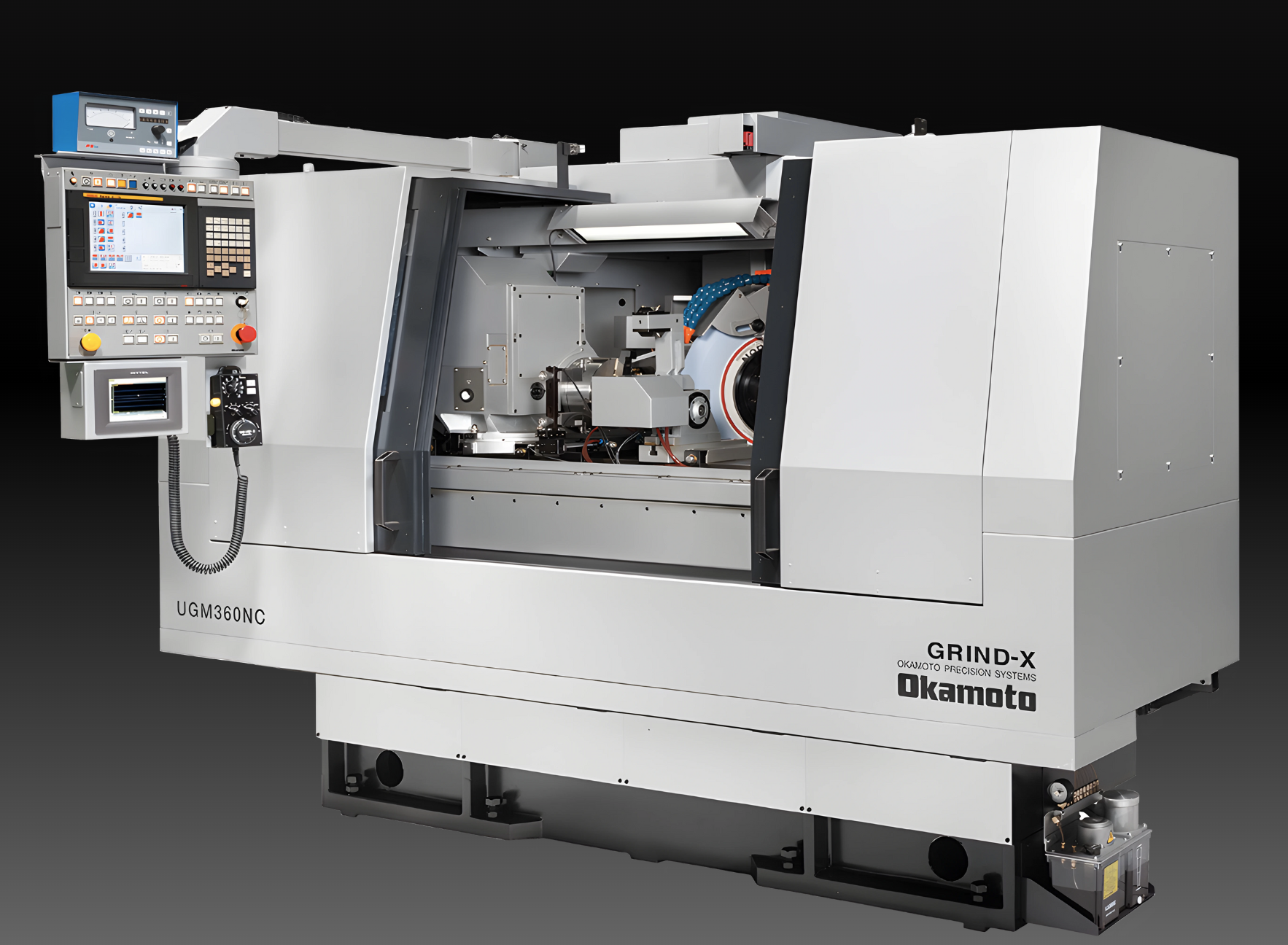

The UGM-NC Series from OKAMOTO represents the forefront of Advanced Okamoto Grinding Technology, delivering a versatile and reliable solution for complex grinding requirements. This universal cylindrical grinder is built upon a foundation of exceptional stability, utilizing a T-shaped machine bed and Double V table slideways to minimize vibration and enhance precision across the grinding area.

Central to its high performance is the low-maintenance B-axis motor with direct drive, which ensures uninterrupted operation and superior control for swivel angle adjustments from 0 to 240 degrees. Accuracy and smooth, precise movements are further guaranteed by directly powered ball screws and temperature-stabilized spindles, making the machine perfect for long cutting cycles and ensuring consistent quality. Operators benefit from a user-friendly system equipped with a standard 10-step grinding program and optional profile grinding capabilities to simplify complex projects. All grinding data is managed via an intuitive touchscreen interface, with wheel and work spindles driven by high-performance Fanuc AC servomotors. The machine can accommodate a maximum swing diameter of 320 mm and a maximum weight of 150 kg between centers with models offering distances between centers up to 1000 mm, reflecting its robust and dependable design for modern CNC shop demands.
