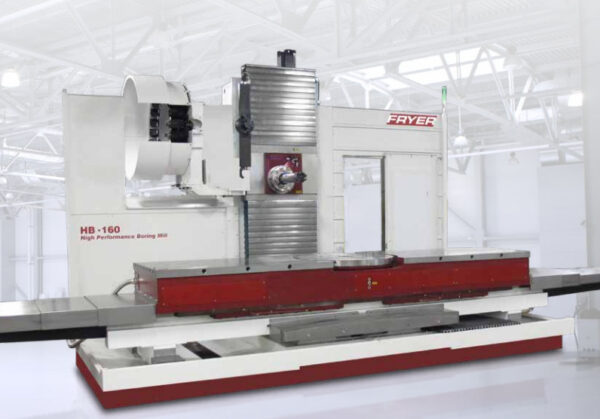

High Performance Boring Mills

120″ x 50″ x 40″

Fryer’s HB Series Boring Mills are heavy-duty machines designed for high precision machining. Equipped with a 20″ travel bar type spindle and a powerful 40 HP spindle motor. Rugged box way construction and high precision ballscrews ensure high performance cutting and high accuracy tolerances. The user-friendly Fryer – Siemens CNC allows shop floor programming for single-piece runs or G-code programming for high production.

FEATURES

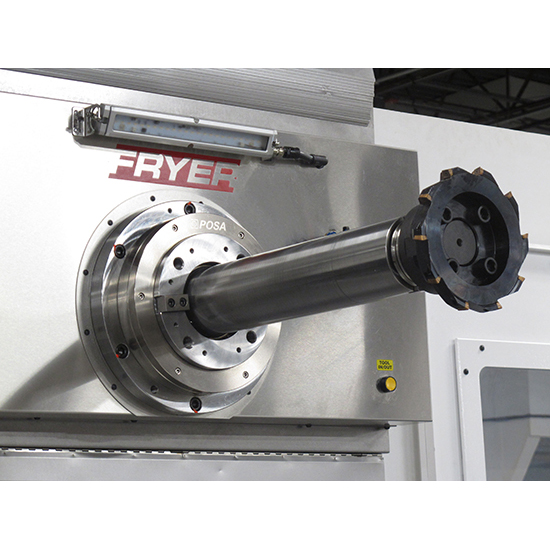

• 50 taper bar type spindle 4.33″ diameter
• 20″ travel bar fully programmable – W axis
• 3,000 RPM spindle speed
• 40 HP spindle with 360 ft/lbs of torque
• 24, 40, or 60 tool arm-type ATC
• Standard coolant thru the spindle

PRODUCTIVITY

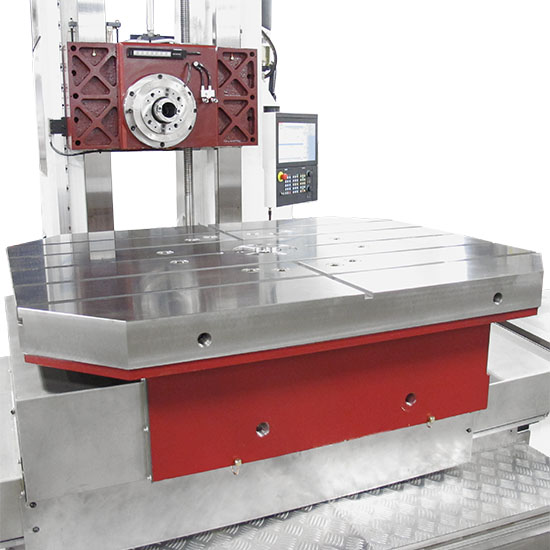

• Built-in rotary table allows multi-sided machining
• Simple menu programming
• Fast set-up keys and manual operation
• Excellent for small lots
• Easy access for large part loading
• Rugged 4-box way construction

X Axis Travel 120″
Y Axis Travel 55″ (72″)
Z Axis Travel 50″
W Travel 20″
Table Size 40″ x 126″
Table Load (Evenly Distributed) 10,000 lbs.
