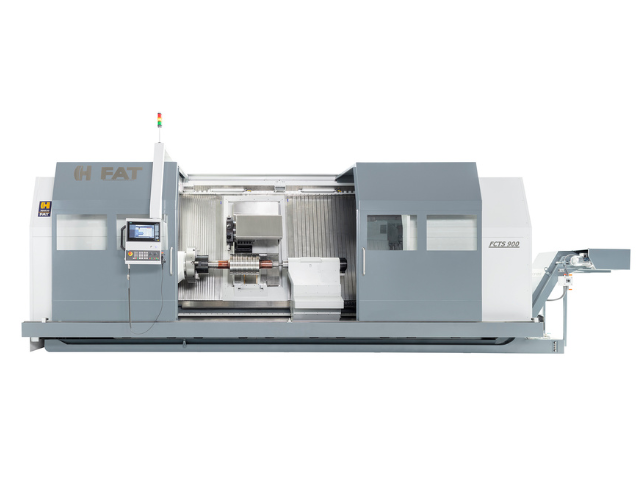

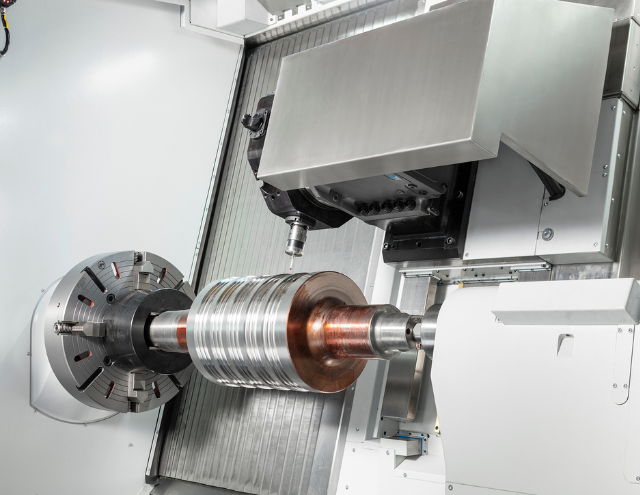

The FCTS 900 is a core model in the range of high-quality CNC machine models manufactured in Europe by FAT-Haco. Designed for powerful and precise machining, this horizontal turning center handles workpieces up to 900 mm turning diameter without being restricted by the carriage slide due to its specialized bed and column construction. This design also facilitates optimum swarf removal and improves the distribution of cutting forces- guaranteeing pure accuracy even during heavy cuts. The machine can support a maximum weight of 4500 kg between centers and features a robust 2-range planetary gearbox delivering up to 3500 Nm of max turning torque.

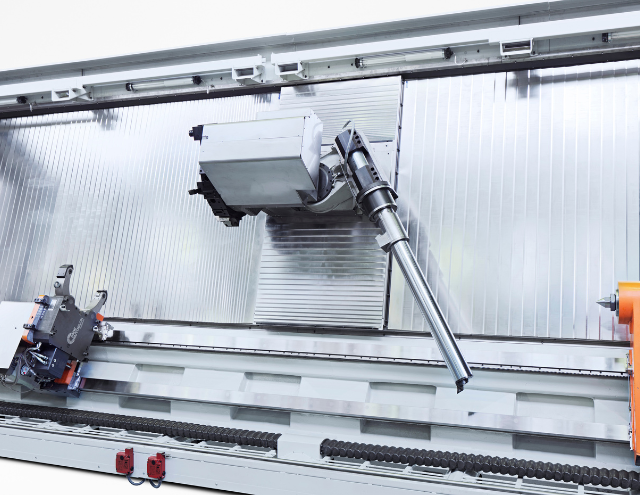

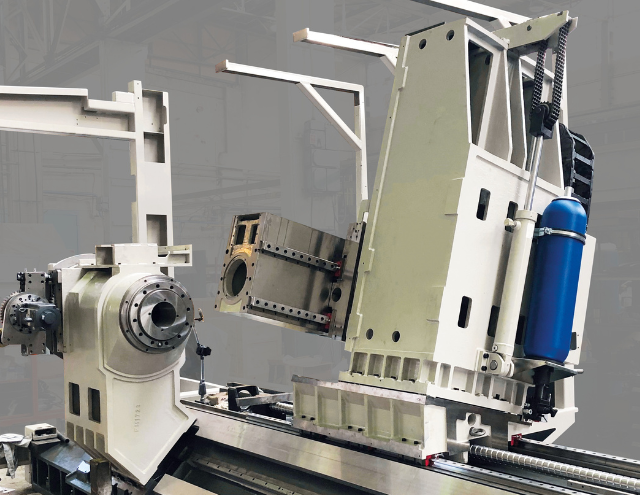

The FCTS 900 is available in three versions to meet diverse production needs: a standard turning machine- the FCTS 900 Y with an integrated Y-axis for off-center milling- and the FCTS YH version which includes a higher column to integrate a powerful B-axis milling head– an extended Y-axis travel (450 mm)- and a tool magazine– transforming it into a high-performance, multi-tasking machining center. With top spindle speeds up to 2500 rpm and a large $140$ mm or $220$ mm spindle bore, the FCTS 900 offers the highest level of machining for manufacturers requiring heavy-duty precision and versatility.
The FAT HACO FCTS 900 is a modern, European-made CNC Horizontal Turning Center built for heavy-duty applications. Its special bed and column design ensures unlimited 900 mm turning diameter by the carriage slide- optimal swarf removal- and the best distribution of cutting forces. This machine delivers precise accuracy for large workpieces, with options for a Y-axis or an advanced B-axis milling head for full multi-tasking capability.
