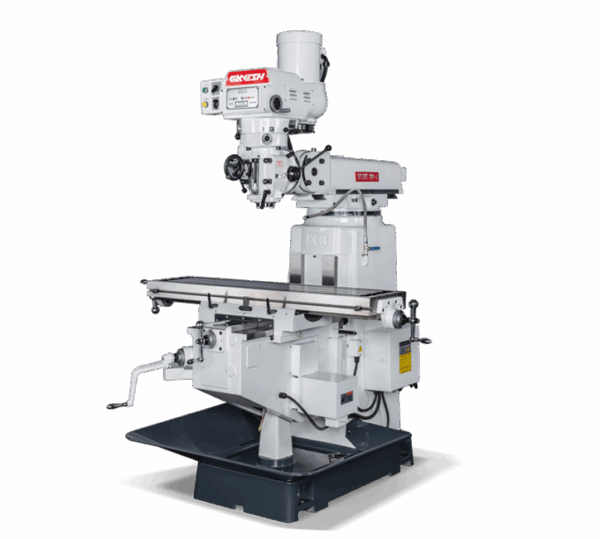

The Ganesh GMV-4 is a rugged, heavy-duty 40-Taper Milling Machine built for maximum performance and accuracy. It features a large 12-inch by 54-inch table capable of holding workpieces up to 1200 pounds and offers generous travels of 36 inches in the X-axis and 16 inches in both the Y and Z axes. Power is delivered by a 5 HP spindle motor driving a robust NT 40 NMTB N S spindle taper. The variable speed drive provides a dual range from 80 to 4000 RPM. Precision is ensured by ABEC-7 class-7 precision spindle bearings and an exceptionally low spindle runout of 00002 inches maximum. For superior stability and longevity, the machine incorporates hardened and ground square box ways in the Y and Z axes and hardened ground dovetail ways in the X-axis. The quill is hardened, ground, and chrome-plated with three power feed rates for precise drilling and boring. The milling head can tilt 90 degrees left to right and 45 degrees front to back, allowing for versatile angled machining operations.
