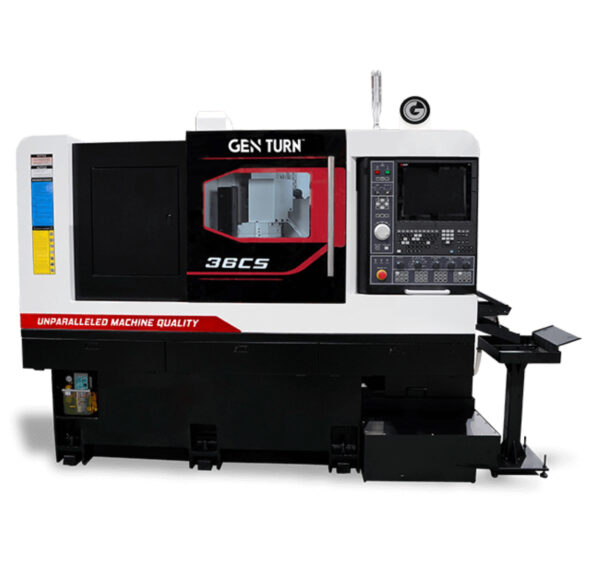

The GEN TURN 36-CS is an advanced model in the EXPAND GEN TURN Mill Turns series, engineered as a 7-Axis CNC Swiss Screw Turning Machine Lathe capable of operating Without Guide Bushings, making it highly efficient for standard length bar stock. This machine is built for the simultaneous and precise production of complex parts, utilizing Simultaneous Main and Sub-Spindle CNC Swiss Machining. The main spindle features a powerful 10 HP motor and reaches a maximum speed of 6-000 RPM with a 5-bearing configuration. The maximum bar capacity is 1-3-8 inch 36 mm with an adapter.

A key feature is its multi-axis capability, including Dual C-Axis control and a true Y-Axis travel of 19-29 inches, enabling greater complexity and flexibility in machining. The machine is equipped with a total of 27 tool positions, including 11 driven tools: 4-ER-20 cross slide live tools and 3-ER-20 front slide live tools, all capable of 4-000 RPM. The machine maintains high throughput with 1-181 inches per minute rapid travel rates on the X, Y, and Z axes. The system ensures high part quality with a minimum input unit of 40 millionths inch and is equipped standard with essential production features like a Parts Catcher and Chip Conveyor.

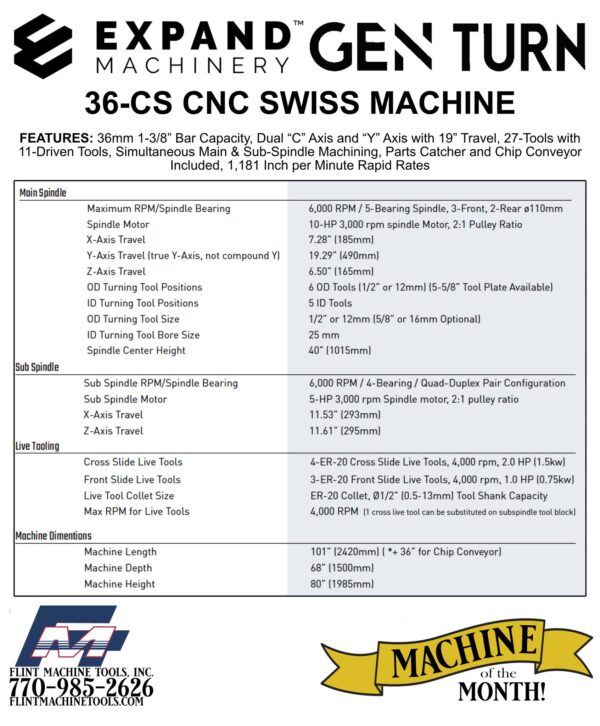

DOWNLOAD BROCHURE
