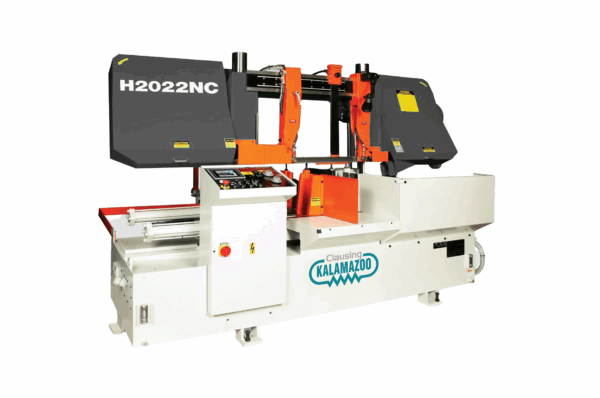

The CLAUSING H2022NC Double Column Fully Automatic Horizontal Bandsaw is a heavy-duty production saw designed for maximum output and reliable, continuous operation. The double-column design ensures superior stability and precise cutting on large materials, with a maximum 90-degree cutting capacity of 20.5 inches round and 22 inches by 20.5 inches rectangular. The saw is powered by a robust 7.5 HP drive motor with three-phase power, offering a more stable flow of voltage and greater horsepower.

Automation and precision are at the core of the H2022NC. It utilizes Smart NC-100 technology, featuring a 5.7 inch HMI touch screen that allows for easy programming of up to 100 different jobs, with automatic shutoff after a preset number of cuts or when stock runs out. The feed system is controlled by an oversized hydraulic cylinder and a hydraulic shuttle vice assembly with a maximum single index length of 19.8 inches. Key features for cut quality and longevity include automatic hydraulic blade tensioning, carbide blade guides with roller bearings, automatic kerf loss compensation, and a recirculating integral coolant system. The machine also features hydraulic front and rear vises with replaceable hardened wear plates, an automatic height setting feature, and a two-year limited warranty for peace of mind.
