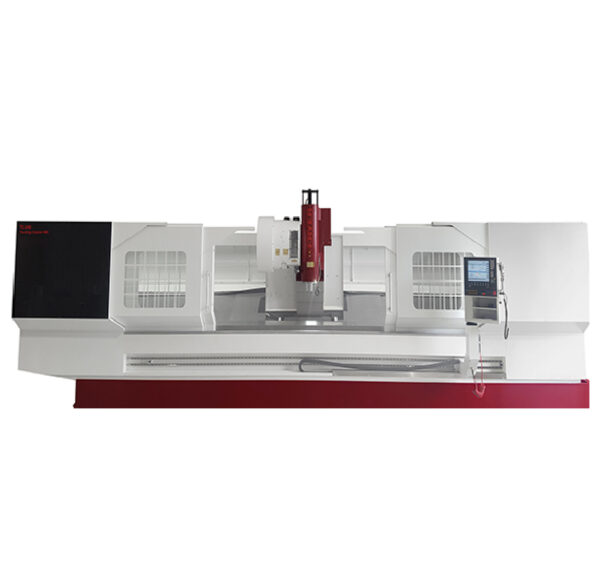

The Fryer TC-160V is a high-capacity model in the TC-V Series of Vertical Traveling Column Machining Centers, designed for the rigorous demands of vertically machining extra-long and heavy components with superior stability and precision.

Key Specifications

• Traveling Column Design: Utilizes a traveling column mechanism paired with a fixed table, ensuring rigidity and high load capacity for the workpiece.
• Travel (X/Y/Z): 160” x 24” (32” optional) x 24” (32” optional)
• Maximum Table Load: Over 10,000 lbs.
• Spindle: High-torque vertical spindle, available in 40 or 50 taper, with options for a gearbox and Through-Spindle Coolant (CTS).
• Speed: Fast 1,000 IPM rapid feedrate.
• Tooling: Equipped with a 24 tool arm type Automatic Tool Changer (ATC).

Features & Benefits

The TC-160V offers an extensive 160 inches of X-axis travel, making it ideal for large-scale parts in industries such as aerospace and power generation. The fixed table provides exceptional stability for loads exceeding 10,000 lbs. Productivity can be significantly enhanced through optional features like dual work zones with a table divider (allowing for loading/unloading while machining) or a tilting head spindle for advanced multi-axis capability. The machine is controlled by the intuitive Fryer / Siemens 828-HS CNC control, which simplifies programming for both toolroom and production environments.
