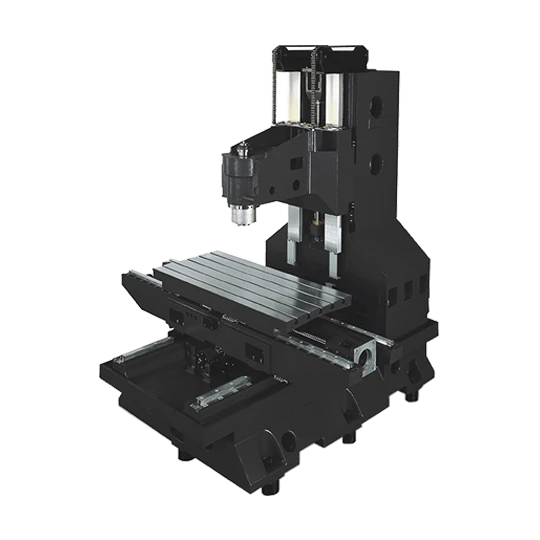

The CNV-1100 is a model within the CAMPRO CNV Series of High Efficiency Vertical Machining Centers, engineered for demanding mold and general component machining tasks. The machine’s robust foundation is based on high cast-iron construction, which was rigorously designed using Finite Element Analysis (FEA) and advanced 3D software to guarantee maximum rigidity, superior accuracy, and high metal removal rates. It utilizes precision linear guide ways on all axes and direct drive servo motors with coupling for precise and dynamic motion control. The Z-axis is designed without a counter-balance- further ensuring machining accuracy.

The CNV-1100 is built for speed and efficiency, featuring rapid feed rates of 30 m/min on all axes and a No. 40 taper spindle with optional high-speed capabilities up to 15,000 rpm. Operator comfort and efficiency are prioritized through an innovative ergonomic design that includes easy chip disposal and a movable control panel that swivels $0-75$ degrees to reduce operator fatigue and increase working efficiency. The available arm-type Automatic Tool Changer offers fast exchange times- such as 2.5 seconds tool-to-tool, maximizing machine uptime and overall production capacity.
