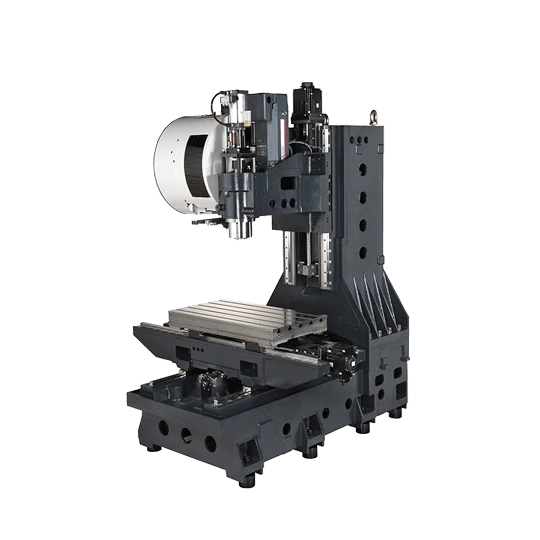

The CNV-850 is an advanced model in the CAMPRO CNV Series of High Efficiency Vertical Machining Centers. The machine’s core structure utilizes high cast-iron construction that was rigorously analyzed via Finite Element Analysis (FEA) and advanced 3D software to achieve maximum rigidity and machining accuracy, even during high metal removal rates. This rigid foundation is complemented by dynamic performance features designed for speed and precision.

For superior movement and positioning, all axes are equipped with precision linear guide ways and driven by direct drive servo motors with couplings. This configuration ensures superior accuracy and enables high-speed, rapid feed rates across the axes. The Z-axis is designed to operate without a counter-balance, further contributing to machining accuracy. Operator comfort and productivity are central to the design- featuring a user-friendly and ergonomically designed control panel that can swivel from 0 to 75 degrees- along with easy chip disposal systems- all of which are intended to reduce operator fatigue and increase working efficiency. The CNV series supports a No.40 taper spindle with optional speeds up to 15-000 rpm and utilizes a fast Arm-type ATC to ensure minimal non-cutting time- making the CNV-850 an ideal platform for high-volume and high-precision applications like die and mold making.
