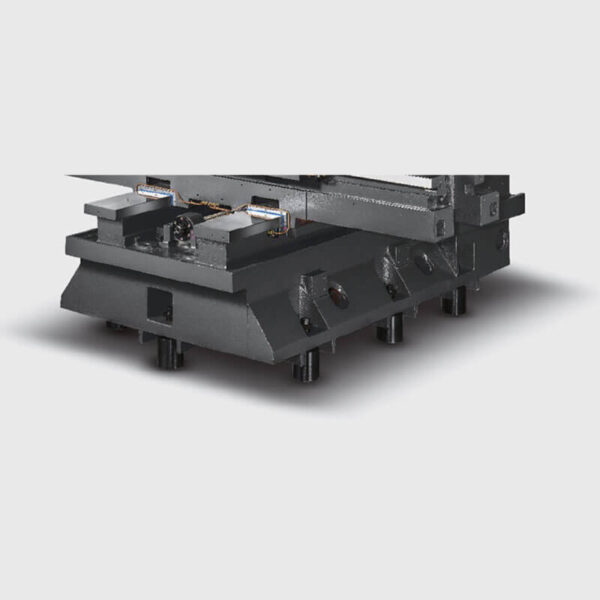

The CPV-1100B is a core model in the CAMPRO CPV-B series of Vertical Machining Centers, specifically designed for precision and stability under the most challenging machining conditions. Its construction is centered on superior rigidity, utilizing high-quality, heat-treated cast iron that has been stress-relieved to ensure maximum dampening capability and long-term accuracy.

This machine is defined by its box ways on all three axes, a feature that significantly upgrades stability during heavy cutting and maximizes the service life of the machine. The work envelope is substantial, offering $1100$ mm in X-axis travel, $620$ mm in Y, and $600$ mm in Z, with a spacious table dimension of $1200 \times 600$ mm capable of handling a maximum load of $1100$ kg.

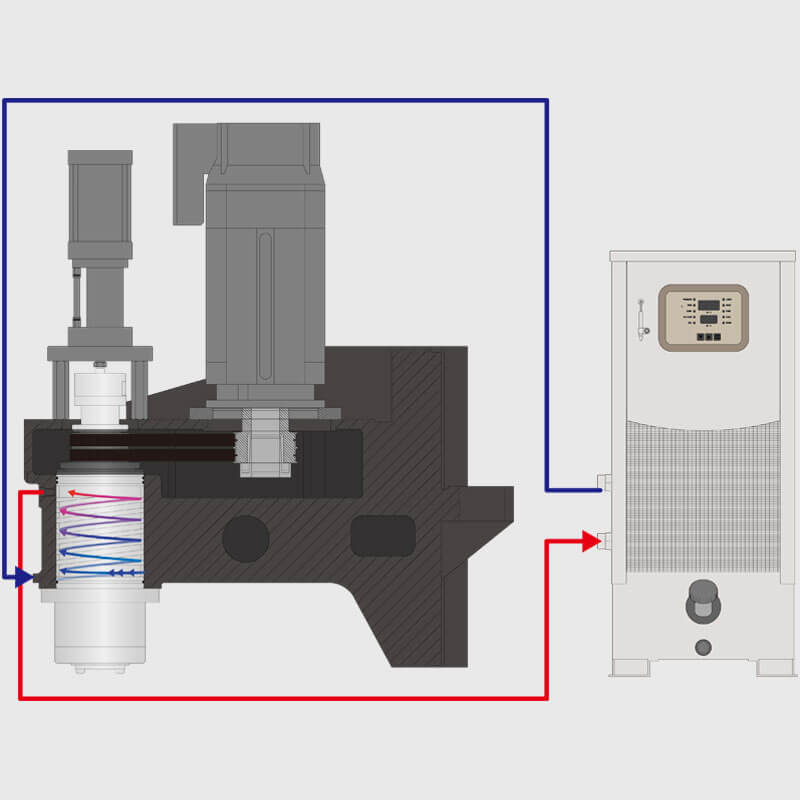

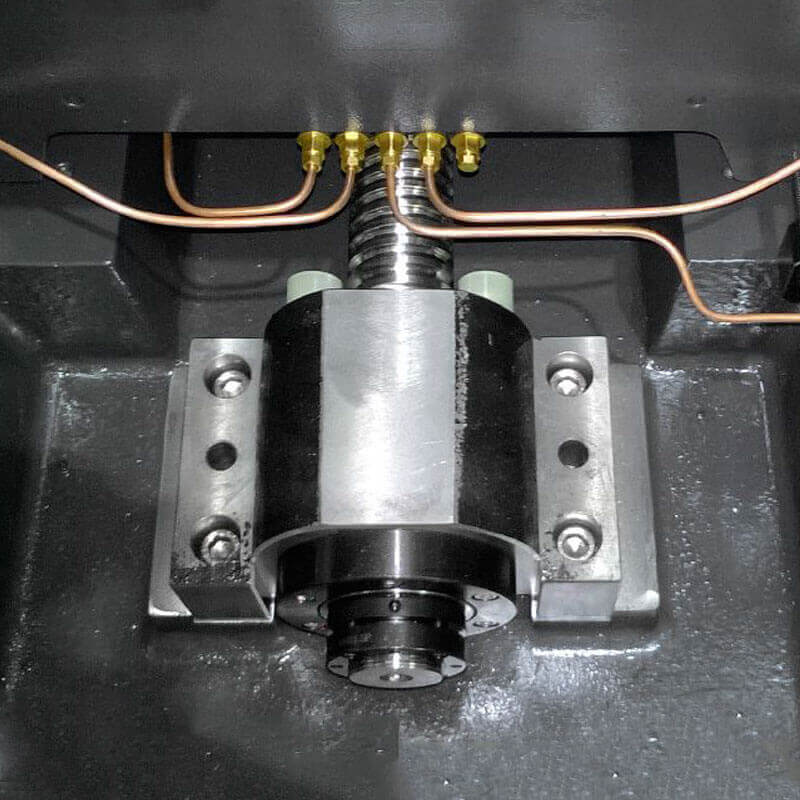

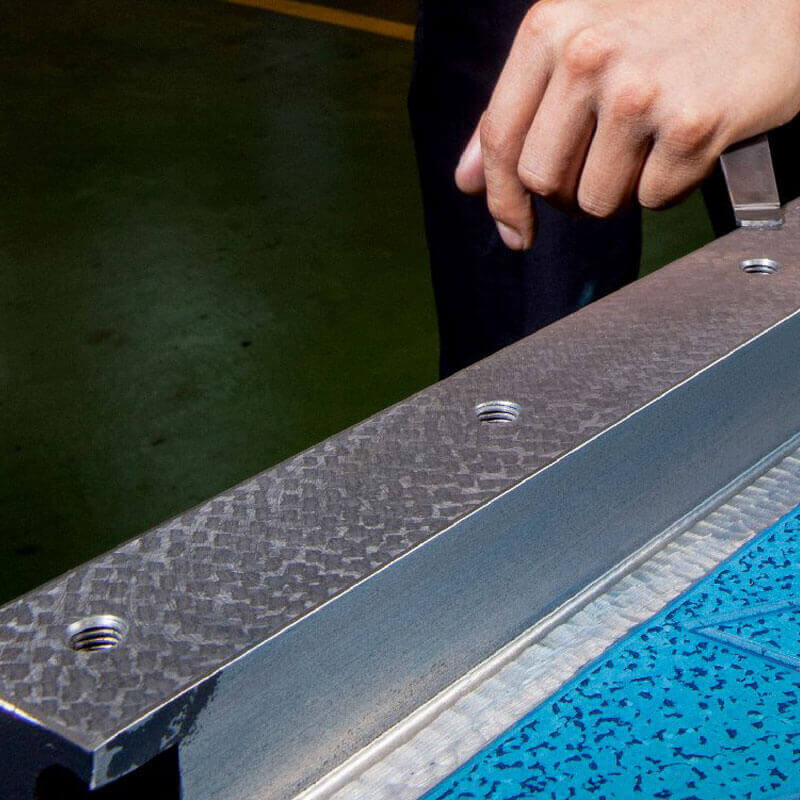

The CPV-1100B’s performance is driven by a powerful spindle system, typically featuring a BT-50 taper that ensures rigid tool clamping for heavier cuts. The machine is engineered with advanced features like C3 class precision ball screws that are pre-tensioned to eliminate backlash, and a spindle oil cooler to maintain a constant operating temperature. Furthermore, its meticulous construction includes precision hand scraping on both Turcite-B and cast iron mating surfaces, a technique that drastically reduces wear and maintains geometric accuracy over the life of the machine. The CPV-1100B is the optimal choice for industries requiring a durable, high-precision platform for processing large components and hard metals.
