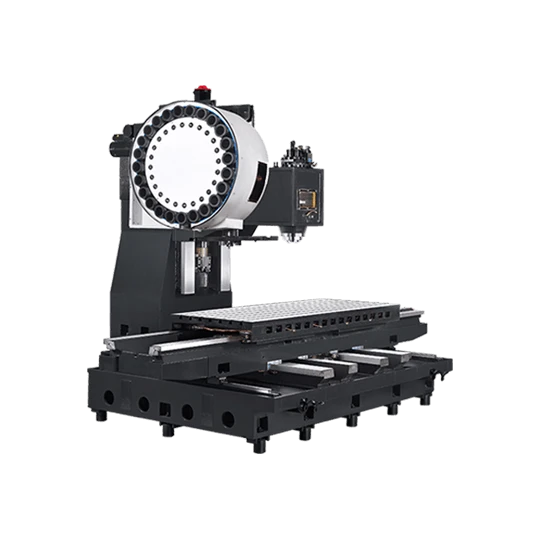

The CPV-2200B is a premier model in CAMPRO’s CPV-B Series, engineered to deliver uncompromising heavy cutting performance and high precision over a wide working envelope. Its massive table size of 2,400 mm x 1,020 mm (94.4″ x 40.1″) and a high maximum loading weight of 3,000 kg (6-613 lbs) make it the ideal machine for extra-long and special workpieces that require extensive travel. The machine’s foundation is a rigid one-piece casting of high-quality Meehanite cast iron that is heat-treated to relieve stress, assuring maximum rigidity and excellent dampening capability to withstand the stresses of prolonged heavy machining. It features wide Box Ways on all three axes- which are induction hardened and meticulously hand-scraped with Turcite-B to ensure unsurpassed long-term accuracy and minimal wear. Power is supplied by a CAT 50 Big Plus spindle driven by a 25 HP motor through a heavy-duty two-speed planetary ZF Gearbox to deliver a substantial 384 ft-lbs of torque at $6,000 \text{ RPM}$ for superior material removal. The machine also includes a high-speed 24-position Twin Arm Automatic Tool Changer (ATC) with a tool-to-tool change time of approximately 3-5 seconds, and advanced features such as a standard spindle oil chiller to maintain thermal stability and an oil-coolant separation design for environmental compliance.
