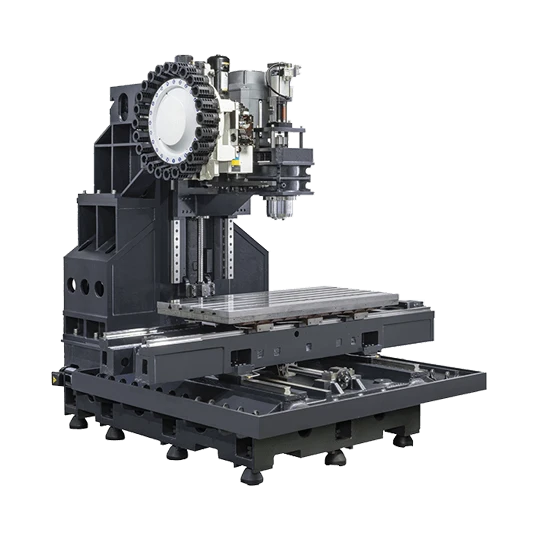

The NV-1280 is a key model in the CAMPRO NV Series of high-performance vertical machining centers, offering exceptional travel capacities of X: 1280 mm Y: 650mm and Z: 630mm. Its design is focused on combining heavy cutting ability with fast movement by utilizing heavy-duty roller-type linear guideways on all three axes. To ensure superior and sustained precision, the machine features a unique thermal symmetry structure on the spindle and loops, which significantly decreases thermal deformation and enhances stability.

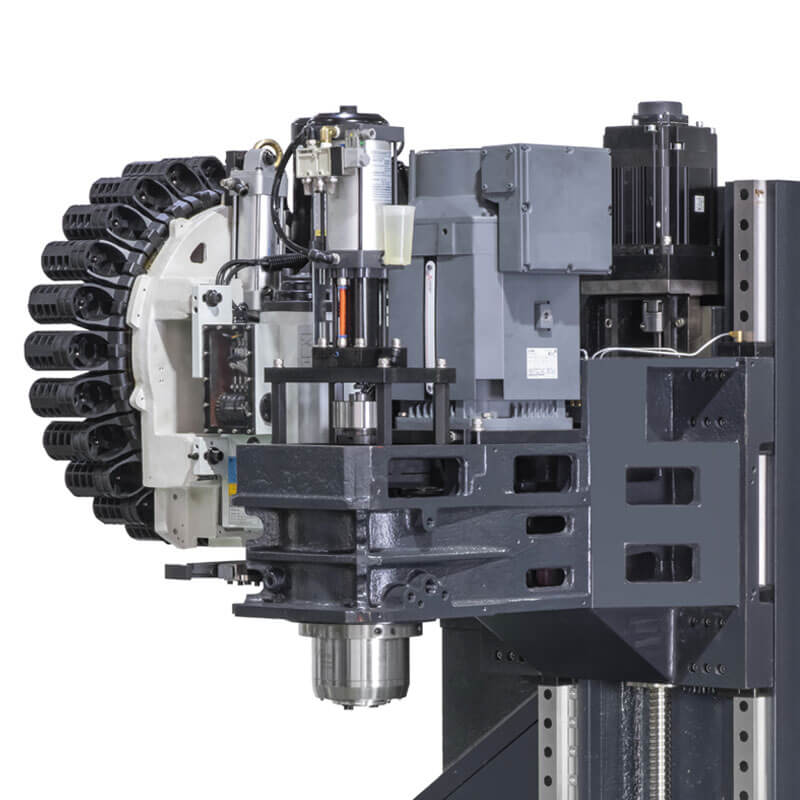

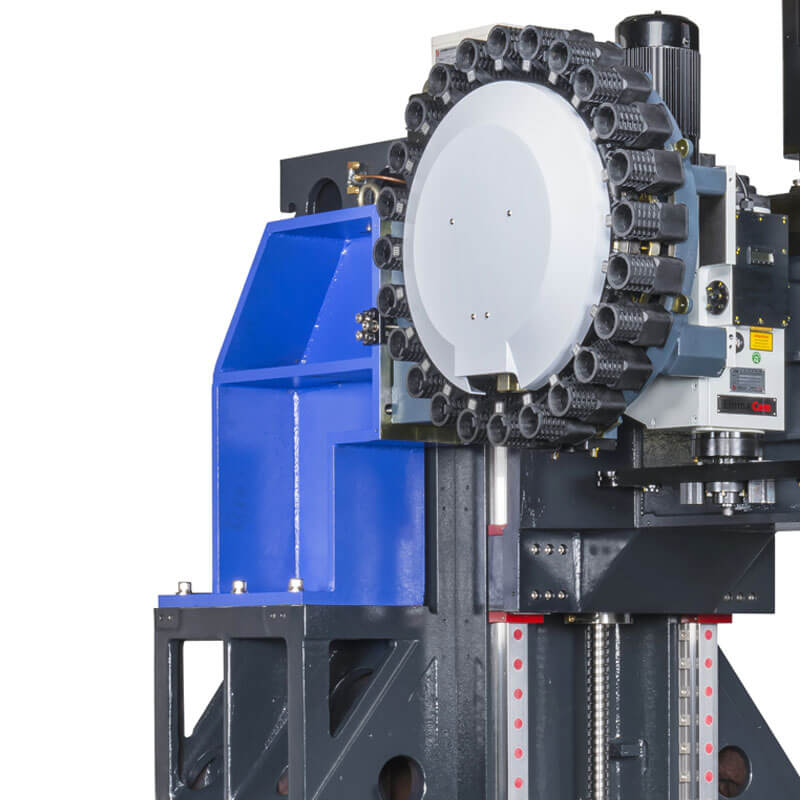

The machine’s structural integrity is reinforced by a one-piece column that includes a shoulder to support the tool magazine- minimizing vibration and maximizing stability during tool changes. All three axes feature pretensioned class C3 precision ballscrews to eliminate backlash. The spindle is powered by an 11 bk/15 kW (20 HP) motor, with speeds up to 10,000 rpm standard, and optional speeds up to 15,000 rpm. Tool management is handled by a fast arm-type ATC with a tool-to-tool change time of only 2.5 seconds and a standard capacity of 24 tools (optional up to 40 tools). Furthermore, the NV-1280 meets modern manufacturing needs by integrating with Campro ERP + IIoT for online machine monitoring, remote control, and troubleshooting, positioning it as an ideal component for Smart Factories.
