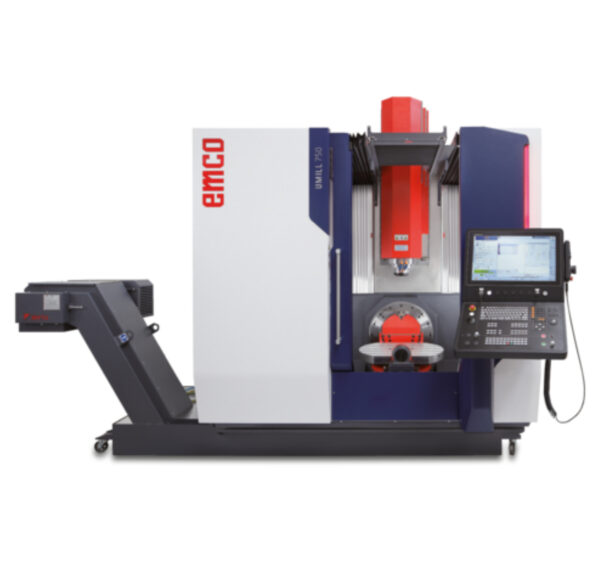

The EMCO CNC Milling Machine Maxxmill 750 is a modern Vertical Milling Center optimized for highly precise 5-sided machining (4+1 axis) of complex components in a single setup. Designed with a moving column concept, this machine is ideal for job shops, mold and die makers, and companies requiring top thermostability and accessibility for small to medium-sized workpieces.

Features & Benefits

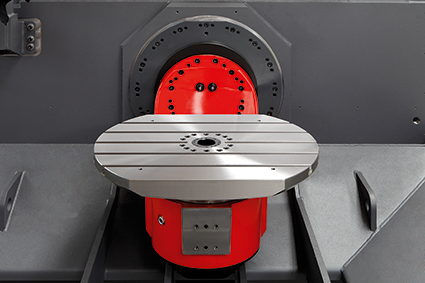

• 5-Sided Machining in One Setup: Equipped with a massive swivel-rotary table (750 x 600 mm) that provides high stability and precision, allowing complete machining of a workpiece on five sides without reclamping, thus improving accuracy and throughput.
• High-Performance Spindle Options: Available with a water-cooled Motor Spindle (15,000 rpm / 100 Nm) for dynamic high-speed applications or a robust Mechanical Spindle (12,000 rpm / 100 Nm), catering to a wide range of materials and cutting demands.
• Compact Design & Accessibility: The vertical milling center features a modern moving column concept and a compact machine design, which ensures easy access to the work area while maintaining a small footprint.
• Advanced Automation Options: Supports increased productivity with extensive options, including laser devices for tool presetting and breakage checks, automatic workpiece measuring probes, and increased coolant pressure (up to 20 bar).
• Cutting-Edge Control: Utilizes advanced CNC technology such as Siemens Sinumerik ONE (which includes the EMCONNECT Digital Process Assistant for smart manufacturing integration) or Heidenhain TNC 620, offering simplified programming and high performance.
• Top Precision: Guaranteed by the combination of top thermostability, a rigid structure, and standard high-resolution measuring systems.
