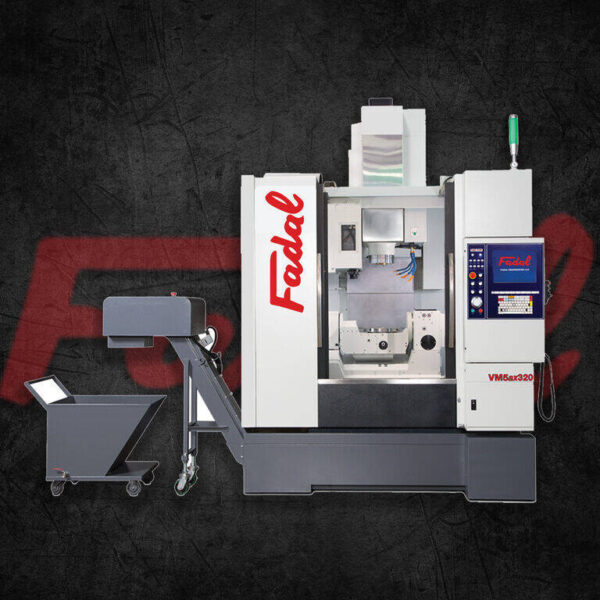

The Fadal VM5ax320 is engineered for manufacturers who need advanced five‑sided machining capability in a compact and reliable package. Its trunnion-style rotary table allows full access to multiple surfaces of a workpiece without reclamping, dramatically increasing positioning accuracy and operator efficiency.

With X, Y, and Z travels of approximately 460 mm, 610 mm, and 510 mm, respectively, and a 320 mm trunnion table, the VM5ax320 accommodates a broad range of part sizes while maintaining stability and rigidity for demanding applications. The machine’s 15,000 rpm direct drive spindle (CT‑Ready) delivers high‑speed cutting performance ideal for complex contours, precision pockets, and multi‑axis geometries.

Standard features include high‑precision ball linear guides, hollow ball screws with cooling for enhanced accuracy, coolant through the spindle at 20 bar, a 30‑tool automatic tool changer (Big Plus CAT40), and LED work lights to improve visibility in high‑precision machining tasks. Fadal has also equipped the VM5ax320 with a centralized grease system, safety vision panels on both front and side doors, and a robust chip management setup to support productivity and long‑term reliability.

The machine supports a full 360-degree C‑axis rotation and a tilting A‑axis from plus 30 to minus 120 degrees, giving programmers and operators the flexibility needed to handle complex multi‑surface parts in a single setup. Optional enhancements such as advanced controller features and high‑speed machining functions further tailor the VM5ax320 to demanding production environments.

Whether you are machining aerospace components, molds and dies, or precision industrial parts, the Fadal VM5ax320 provides versatile 5‑axis performance, robust construction, and the precision required for high‑value manufacturing.
