The TG4-32 is a programmable, universal grinding machine from JTEKT Toyoda that features a twin-wheel modular design for high flexibility in cylindrical grinding. It is engineered for long-term machining accuracy in high-production applications.

Product Description: TG4-32

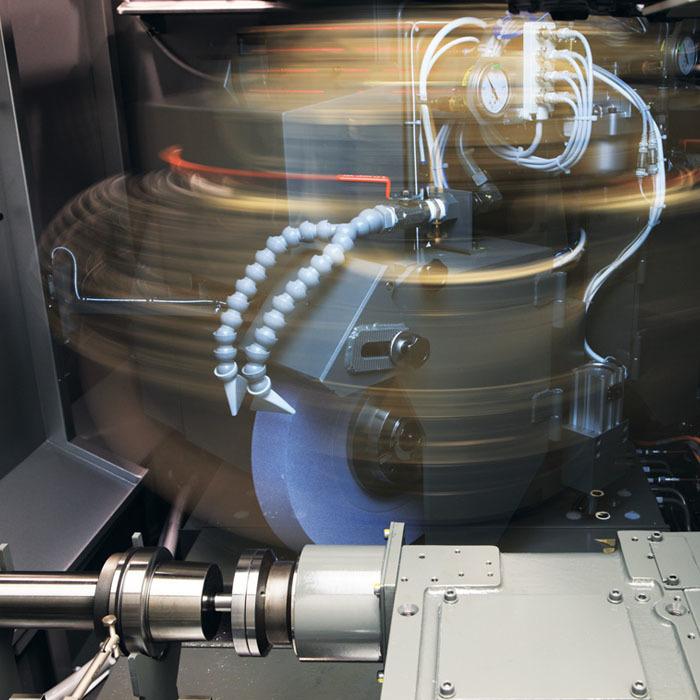

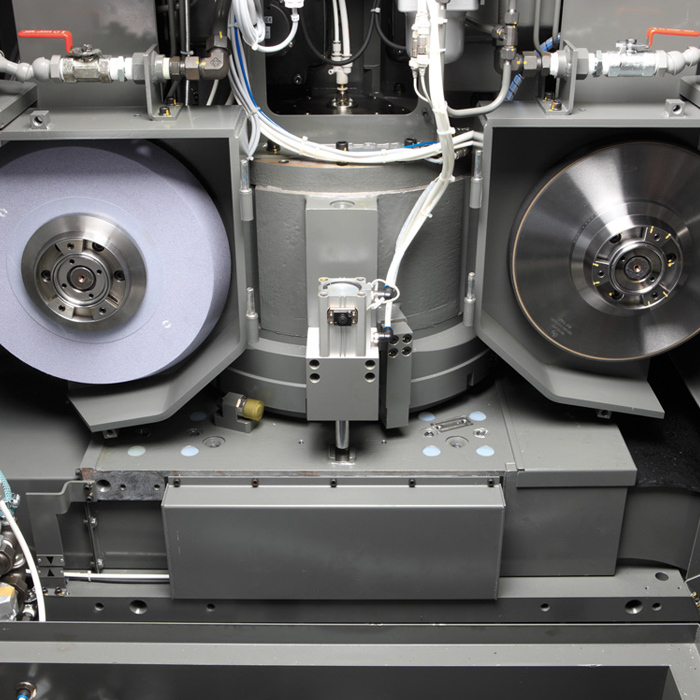

The TG4 series is characterized by its automatic wheelhead indexing feature, which allows for multiple grinding configurations and optimizes flexibility for various part geometries. The machine is built around the patented TOYODA STAT BEARING, ensuring exceptional precision, thermal stability, and long-lasting accuracy.

This model is configured for maximum grinding versatility on small to medium-sized parts. Its key specifications are:

• Distance Between Centers: 12.6 inches (320 mm).
• Swing Over Table: 12.6 inches (320 mm).
• Maximum Grinding Diameter: 8.6 inches (220 mm) for Outer Diameter (OD) and 4.7 inches (120 mm) for Inner Diameter (ID).
• Wheel Surface Speed: Capable of high-speed grinding at 8,850 SFPM (45 m/s).
• Weight Capacity: 330 pounds.

The TG4-32 is a compact, high-speed, multi-wheel solution perfect for manufacturers needing a versatile and precise universal grinder that can handle both OD and ID grinding.
